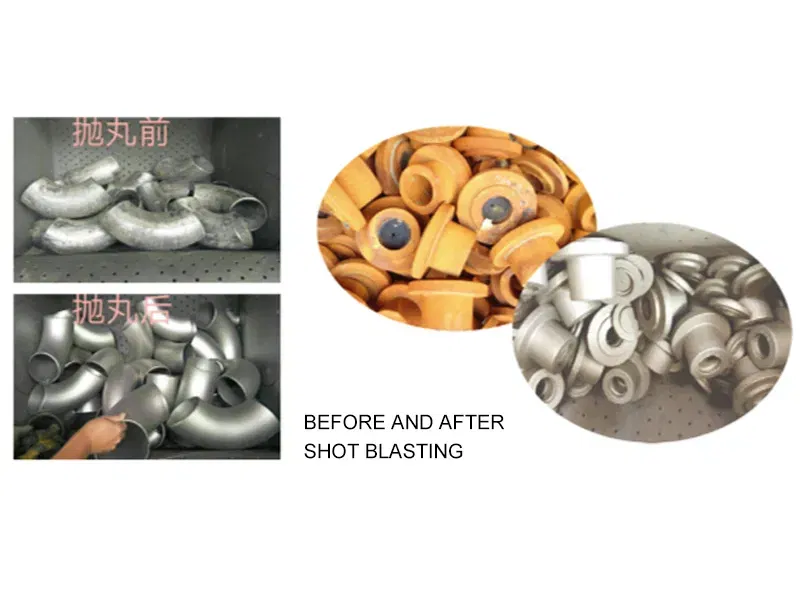

This series of crawler-type shot blasting machines can be used to clean castings, forgings, and welds, removing inclusions and scale from the workpiece surfaces. Thanks to its robust protective features, high blasting performance, and rationally designed shot circulation system, it can achieve satisfactory results even on difficult-to-clean workpieces. It can also be used to clean workpieces prone to tumbling and falling, non-brittle parts that are not easily crushed, and castings with shallow cavities.
This machine can also be used to clean aluminum castings and certain non-ferrous metal workpieces.
▶ Product Structure
Blasting Turbine:
This is the core component of the equipment, responsible for projecting shot at extremely high speeds onto the workpiece surface. High-performance shot blasters are made of wear-resistant materials and feature high blasting speeds, high cleaning efficiency, and long service life.

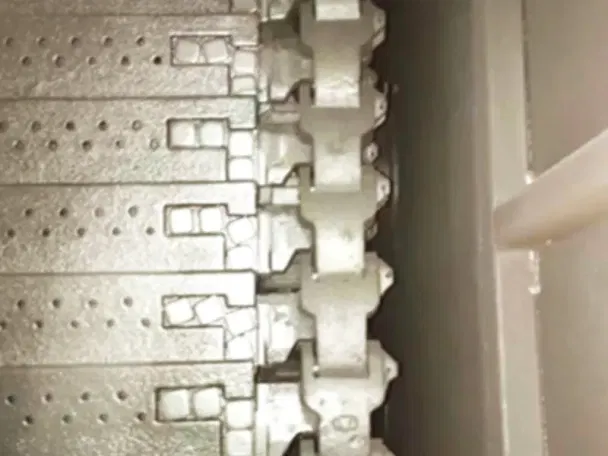

Blast Cabinet with Rubber or Steel Belt:
The blasting cabinet is equipped with a rubber or alloy steel belt, which carries the workpiece and automatically tumbles, effectively improving cleaning uniformity. Rubber belts are suitable for lightweight workpieces, while steel belts are suitable for heavier or hotter workpieces.

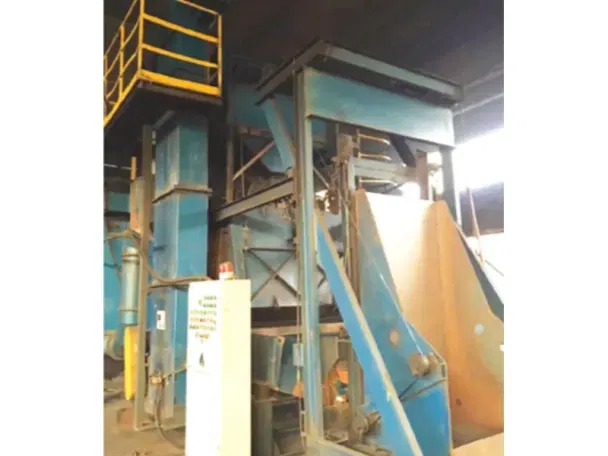

Elevator & Separator:
Post-blasting shot and debris are collected by the bottom of the belt and transported to the elevator. The separator then screens and processes the recovered shot, returning it to the storage hopper, improving resource utilization.
Dust Collection System:
Equipped with a bag or cartridge dust collector, it effectively captures dust generated during the cleaning process, ensuring a clean working environment and meeting environmental standards.
Electrical Control System:
A PLC or push-button control panel is used to implement automatic operation, timing control, and fault alarms, facilitating operation and maintenance.
▶ Advantages
High Cleaning Efficiency
The crawler structure enables workpiece tumbling. Combined with the multi-angle shot blast wheel arrangement, this eliminates blind spots and significantly improves processing efficiency.
Wide Application
Suitable for small and medium-sized parts of various materials and shapes, including castings, forgings, welded parts, and heat-treated parts.
Stable Operation
The machine's rational structural design, along with high-quality transmission components and electronic control systems, ensures long-term stable operation.
Energy Saving and Environmental Protection
The advanced shot circulation system and efficient dust removal device effectively reduce energy loss and environmental pollution, meeting the needs of green manufacturing.
Low Maintenance Cost
Consumable parts are easily replaced, and the wear-resistant rubber or steel crawler tracks reduce maintenance frequency and costs.
Customizable Design
The machine can be customized to meet the customer's workpiece shape, size, and processing requirements, offering high flexibility and adaptability to various production line layouts.
▶ Application Industry
▶ FAQ
How does a rail shot blasting machine ensure efficient cleaning?
A rail shot blasting machine uses high-speed blasting of steel shot particles, utilizing precisely designed blast angles and particle sizes within the blasting chamber to ensure uniform impact on every rail surface. An automated control system ensures precise regulation of blast force and frequency, resulting in a rapid and thorough cleaning process, thereby improving rail quality.
How does the shot recovery system of a rail shot blasting machine work?
The shot recovery system of a rail shot blasting machine uses powerful suction and screening to collect used steel shot and return it to the storage bin. The recovered shot passes through a filtration system to remove impurities before being conveyed back to the blasting system. This recycling process effectively reduces shot costs and ensures efficient operation.
What is the maintenance cycle for the equipment?
The maintenance cycle for a rail shot blasting machine depends on frequency of use and operating environment. It is generally recommended to regularly inspect the shot supply system, blasting chamber, dust removal equipment, and electrical control system to keep the equipment clean and free of dust accumulation and wear. A comprehensive inspection every three to six months ensures efficient operation and extends the service life of the equipment.
