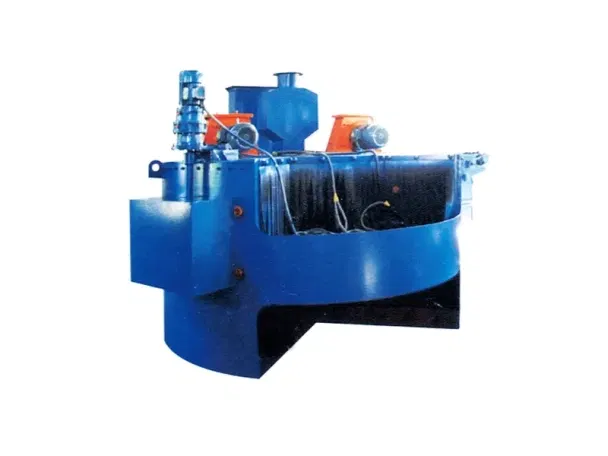

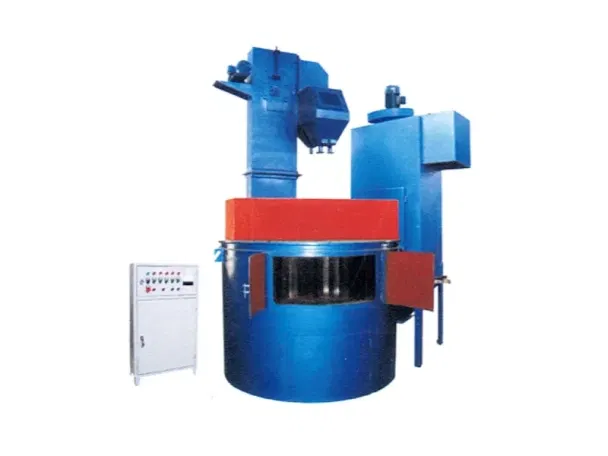

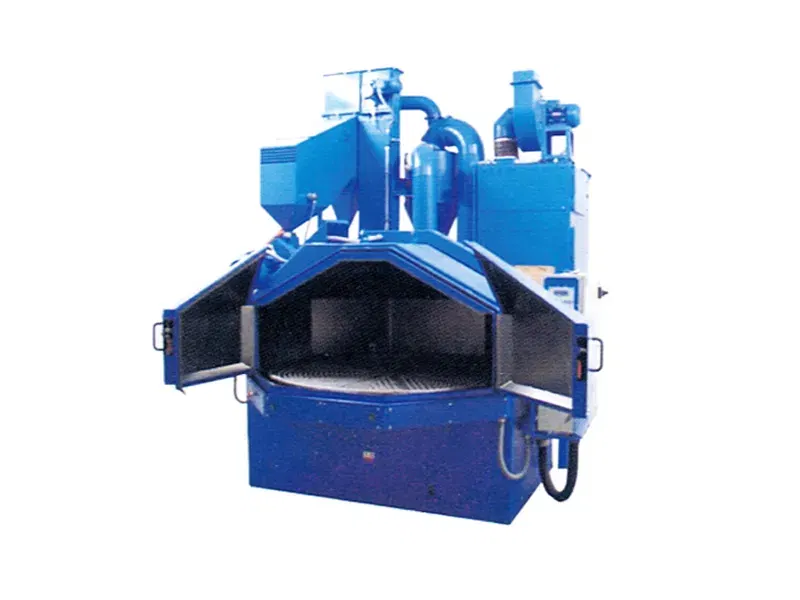

Rotary table shot blasting machines are ideal for cleaning flat, thin-walled, and impact-sensitive parts in casting, forging, and heat treatment workshops. Shot blasting removes rust, dirt, and other debris from various workpieces, improving their surface quality. It also reduces inherent stress in the workpiece, strengthening it and increasing its fatigue resistance.
▶ Product Structure
Turntable System
The turntable is the core component of a rotary shot blasting machine, typically consisting of multiple support wheels and a transmission mechanism. Workpieces are placed on the turntable, which is driven by a motor to rotate the workpiece, ensuring that each workpiece surface is evenly treated by the shot blast wheels. The turntable design incorporates load balancing and stability, ensuring that the workpiece does not shift during the cleaning process.
Shot Blaster
The shot blaster is a key component responsible for propelling steel shot and other particulate matter at high speeds onto the workpiece surface. Generally, a shot blaster utilizes a high-speed rotating impeller to accelerate the steel shot to extremely high velocities before projecting it onto the workpiece surface. The number and distribution of shot blasters can be flexibly configured to meet specific cleaning requirements, ensuring uniform treatment of workpieces on the turntable.
Shot Recovery System
Some of the steel shot used during the shot blasting process is consumed. However, a shot recovery system effectively collects and filters the used shot, recycling it for reuse. The recovery system includes a dust removal device, separator, and storage bin, saving material and reducing environmental pollution.
Drive and Electrical Control System
The equipment is equipped with an automated control system that precisely controls key parameters such as the turntable's rotational speed, the shot blasting angle and intensity of the shot blasters, and the shot flow rate. The operator can easily adjust various settings via the electrical panel to achieve optimal cleaning results. The control system's real-time monitoring and fault alarm functions ensure safe and stable operation.
Dust Removal System
The shot blasting process generates a large amount of dust and impurities. The dust removal system is designed to remove these pollutants, ensuring a clean environment inside the equipment and in the working environment. The dust removal system utilizes high-efficiency filters and dust collection devices to significantly reduce airborne dust concentrations, meeting modern environmental standards.
▶ Advantages
Efficient Cleaning
The rotary table shot blasting machine uses high-speed rotation to spray steel shot and other projectile media onto the workpiece surface. This rapidly removes impurities such as rust, oil, and oxide layers, providing uniform and thorough cleaning results, ensuring optimal workpiece cleaning.
Energy Saving and Environmental Protection
The machine is equipped with an efficient steel shot recovery system, which not only minimizes steel shot consumption but also reduces waste generation and environmental pollution. A dust removal system further enhances the machine's environmental performance, ensuring compliance with various environmental regulations.
Improves Workpiece Quality
Shot blasting creates a microscopic roughness on the workpiece surface, improving coating adhesion and reducing surface cracks and defects. Furthermore, shot blasted workpieces exhibit enhanced fatigue and corrosion resistance, extending their service life.
Adaptability
The rotary table shot blasting machine is suitable for workpieces of various shapes and sizes, and is particularly well-suited for small and medium-volume production. Workpieces made of various materials, including cast iron, aluminum alloy, and steel, can be effectively cleaned using this machine. Furthermore, the machine configuration can be adjusted to meet diverse cleaning requirements based on specific production needs.
Automated Operation
The machine is equipped with an advanced electrical control system for easy operation, enabling one-touch start and stop, as well as automatic control of the cleaning process. By adjusting the control panel, the operator can precisely set various operating parameters, significantly improving production efficiency and reducing manual intervention.
Extended Equipment Life
Major components of the machine, such as the turntable, shot blast wheel, and recovery system, are made of highly wear-resistant materials, ensuring a long service life. With proper maintenance, the machine can maintain efficient and stable operation for extended periods, reducing maintenance costs.
Reduced Labor Costs
The fully automatic control system of the turntable shot blasting machine significantly reduces manual intervention, requiring only a small number of operators for monitoring and maintenance. This reduces labor costs and improves production efficiency.
▶ Application Industry
▶ FAQ
What types of workpieces are suitable for rotary shot blasting machines?
Rotary shot blasting machines are suitable for a variety of metal workpieces, especially castings, steel parts, mechanical components, and aluminum alloy parts. Regardless of the size and shape of the workpiece, effective cleaning can be achieved by adjusting the machine settings, making it particularly suitable for mass production.
How can I improve the efficiency of a rotary shot blasting machine?
The key to improving efficiency is to properly adjust the speed of the shot blasting wheel, the shot flow rate, and the workpiece rotation speed. Regularly clean the recovery system to ensure efficient recycling of the shot. Furthermore, the placement of the workpiece can affect the cleaning effect; ensure that the workpiece is evenly exposed to the shot blasting area for optimal cleaning results.
What is the maintenance cycle for a rotary shot blasting machine?
The maintenance cycle for a rotary shot blasting machine is generally determined by the frequency of use. It is recommended to inspect all key components of the machine, including the shot blasting wheel, recovery system, dust removal system, and electrical control system, monthly. A comprehensive inspection should be performed quarterly to lubricate, clean, and replace worn parts to ensure long-term, efficient operation.
