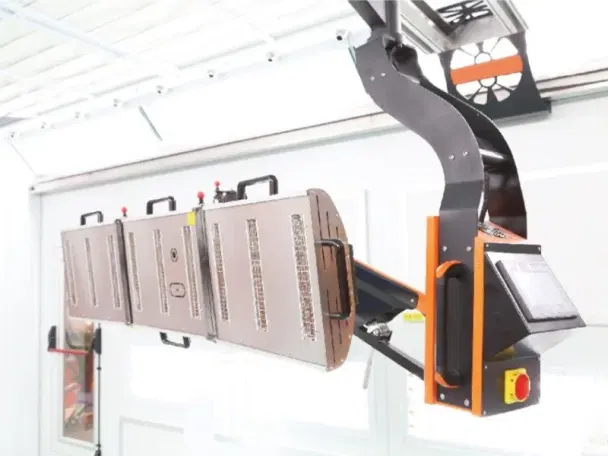

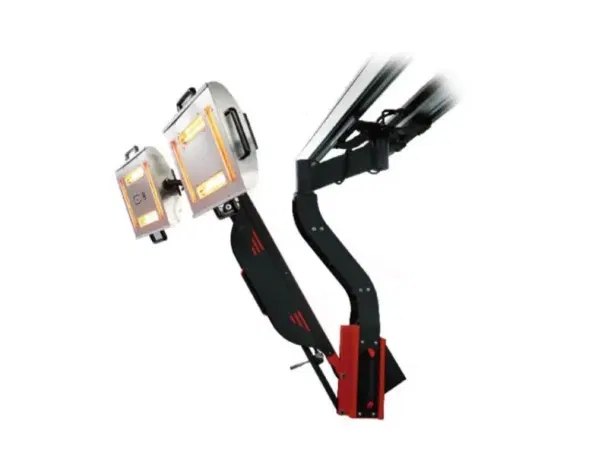

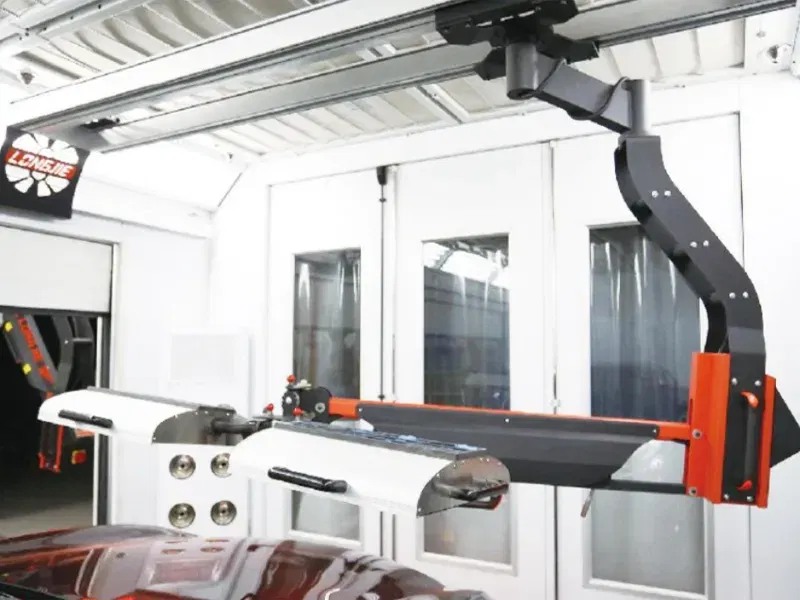

Infrared Drying Lamp Specifically for Painting Applications

Extra-large drying area: 2 meters * 0.8 meters
Unique patented power supply system solves the problem of wire entanglement when the drying lamp rotates.
Patented adjustable damping structure walking system allows the lamp to be freely positioned at any desired location, even if the booth's longitudinal and transverse beams are not level.
Gas struts use German STABILUS controllable gas struts.
Output lamps can all work simultaneously or individually.
H-shaped cantilever design: lightweight, high strength, and non-deforming.
Unique internal reflector design makes energy utilization more efficient.
Lamp head: Aluminum alloy molded back cover and aluminum extruded side panels, 8K full mirror stainless steel reflector, chrome-plated protective mesh at the front, "well" shaped track design allows the drying lamp to reach every point in the booth.
Uses flexible cable or tank chain power supply, complying with explosion-proof requirements for spray booths (not powered within the track).
Unique and convenient reflector cleaning design (dust on the reflector can cause more than 30% energy loss).
The position of the drying lamp can be freely adjusted, allowing for drying of any part except the vehicle chassis.
Humanized locking structure design is easy and convenient to operate, ensuring that the lamp head meets various drying angles while ensuring safety.
Complies with European CE safety standards and has passed CE safety certification.
